Three Layer HDPE Blown Film Machine
  • Three Layer HDPE Blown Film MachineThree Layer HDPE Blown Film Machine

Three Layer HDPE Blown Film Machine

Based in China, Mul-Plus is a well-known producer and provider of Three Layer HDPE Blown Film Machines. Known for our dedication to both price and quality, our equipment has received praise from many happy clients. With a strong market presence throughout Asia, we are well-positioned to be your go-to partner in China, providing premium Three Layer HDPE Blown Film Machine and first-rate customer support.

Send Inquiry

Product Description

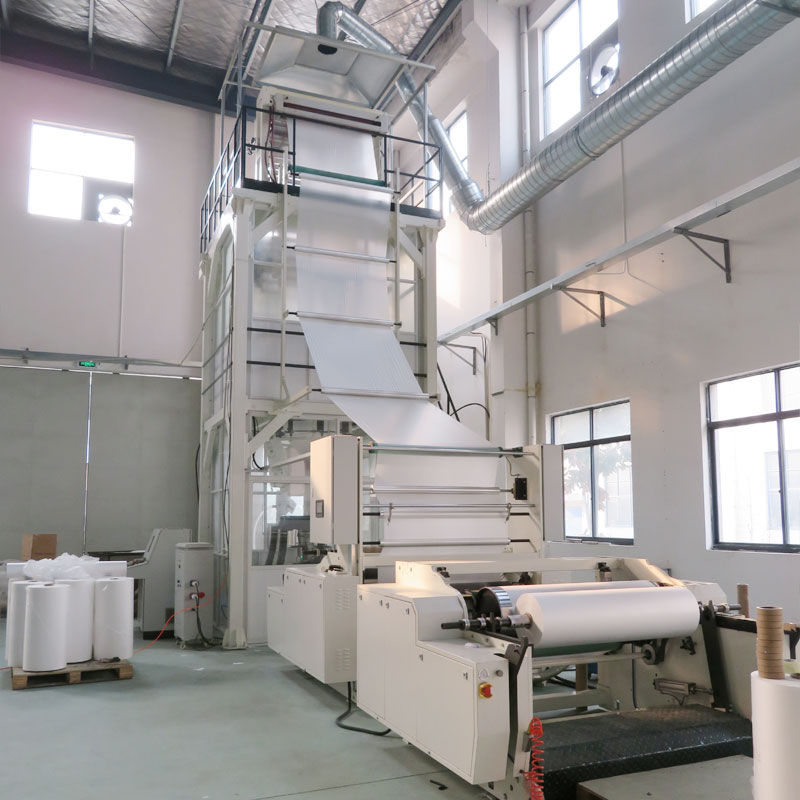

Mul-Plus Three Layer HDPE Blown Film Machine is equipped with advanced automation features, allowing you full control of the entire equipment through the HMI interface. The equipment includes:


-Fully automatic center-gap-surface winder Internal with dual-side technology

-Non-contact type IBC system

-Automatic thickness control

-Automatic Gravimetric Dosing System


Certainly, you have the flexibility for customization, and we provide reliable recommendations tailored to your needs.


Parameter (Specification)

Attention: What is shown here is a standard model of the machine.

Roller Width (mm) 1600 1800 2000 2200 2400 2600 2800 3000
Screw Diameter (mm) 65*2
75*1
65*2
75*1
65*2
80*1
75*2
85*1
75*2
85*1
75*2
85*1
75*2
90*1
80*2
90*1
Main Motor (HP) 60*2
75*1
60*2
75*1
60*2
100*1
100*2
120*1
100*2
120*1
100*2
120*1
100*2
150*1
100*2
150*1
Film Width (mm) 750-1500 850-1700 950-1900 1050-2100 1150-2300 1300-2500 1400-2700 1550-2900
Film Thickness (mm) 0.02-0.18, depending on the material & film size
Die Diameter (mm) 300 350 400 450 500 550 600 650
Film Output (Kg/hr.) 300 330 380 420 480 550 600 650



Please note that the models shown here are not exhaustive. If you require other models, please feel free to contact us.


Feature And Application

The Mul-Plus three-layer HDPE blown film machine produces high-quality films for our vast clientele. Our equipment offers broad adaptability to raw materials, high production capacity, low energy consumption, and enhances your competitiveness.

-It supports a wide range of raw materials such as HDPE, LDPE, LLDPE, MPE, POE, EVA, TPU. (Please contact us for further details.)

-Application for protective films, shrink films, composite films, cold stretch sleeve films and more.

-For Food packaging,Medical packaging,Industrial packaging,Agriculture,Consumer -goods packaging,Construction,Textile manufacturing.

-Max. film width of up to 3.6 m (7.2 m for single-layer-opened films)
