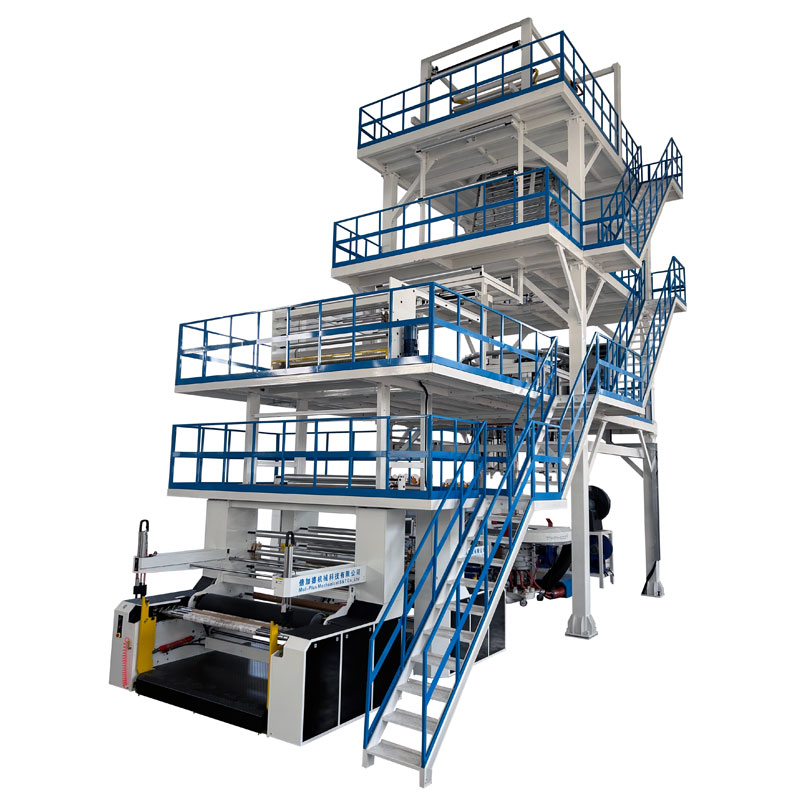

Five Layer Co-Extrusion Blown Film Machine
Mul-Plus, based in China, manufactures and supplies superior Five Layer Co-Extrusion Blown Film Machines. Our machine is well-known for its great quality and affordable cost, and the Five Layer Co-Extrusion Blown Film Machine has received positive feedback from a large number of delighted clients. With a strong market presence throughout Asia, we gladly await the opportunity to serve as your reliable partner in China.
Send Inquiry
Product Description
Mul-Plus Five Layer Co-Extrusion Blown Film Machine is equipped with advanced automation features, allowing you full control of the entire equipment through the HMI interface. The equipment includes:
-Fully automatic center-gap-surface winder Internal with dual-side technology
-Non-contact type IBC system
-Automatic thickness control
-Automatic Gravimetric Dosing System
-Trim waste rewinder
We offer a wider range of optional accessories.
Certainly, you have the flexibility for customization, and we provide reliable recommendations tailored to your needs.
Parameter (Specification)
| Roller Width (mm) | 1600 | 1800 | 2000 | 2200 | 2400 | 2600 | 2800 | 3000 |
| Screw Diameter (mm) |
50*4 65*1 |
50*4 65*1 |
55*2 65*2 75*1 |
55*2 65*2 75*1 |
65*4 80*1 |
65*4 80*1 |
65*2 75*2 80*1 |
75*4 85*1 |
| Main Motor (HP) |
30HP*4 60HP*1 |
30HP*4 60HP*1 |
40HP*4 60HP*1 75HP*1 |
40HP*4 60HP*1 75HP*1 |
60HP*4 100HP*1 |
60HP*4 100HP*1 |
40HP*2 75HP*1 10HP*1 |
100HP*4 120HP*1 |
| Film Width (mm) | 700-1500 | 800-1700 | 950-1900 | 1050-2100 | 1200-2300 | 1350-2500 | 1450-2700 | 1550-2900 |
| Film Thickness (mm) | 0.02-0.18, depending on the material & film size | |||||||
| Die Diameter (mm) | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 |
| Film Output (Kg/hr.) | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 700 |
Please note that the models shown here are not exhaustive. The Output depends on the material and many factors. If you require other models, please feel free to contact us.
Feature And Application
The Mul-Plus five-layer co-extrusion blown film machine produces high-quality films for our vast clientele. Our equipment offers broad adaptability to raw materials, high production capacity, low energy consumption, and enhances your competitiveness.
-It supports a wide range of raw materials such as HDPE, LDPE, LLDPE, MPE, POE, EVA, TIE, PA, EVOH. (Please contact us for further details.)
-Application for protective films, shrink films, composite films, cold stretch sleeve films and more.
-For Food packaging，Medical packaging，Industrial packaging，Agriculture，Consumer -goods packaging，Construction，Textile manufacturing.
-Max. film width of up to 3.6 m (7.2 m for single-layer-opened films)
Details
